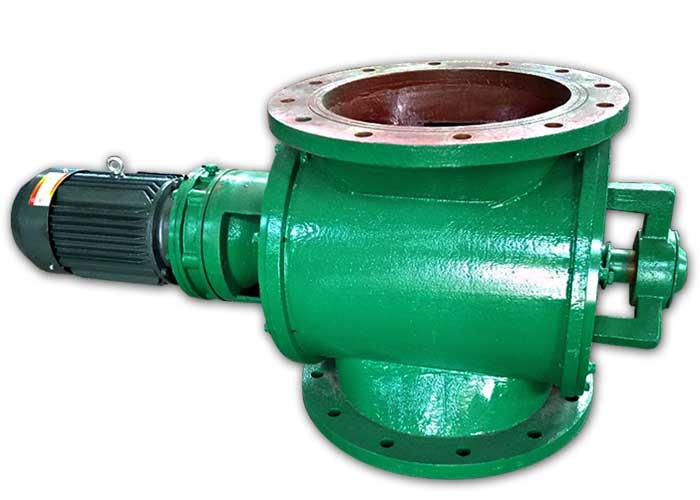

Cast Iron Round Flange Power Used Rotary Air Lock Valve
The Rotary Air Lock Valve Feeding Machine device is a dust removal equipment for ash, wind and other feeding
equipment for the main equipment, suitable for powder and granular
materials, widely used in environmental protection, metallurgy,
chemical, food, food and other industrial sectors. Our factory can
also be designed and manufactured according to the requirements of
users. (support coupling belt chain drive)
Characteristics of Rotary Air Lock Valve
YJD- B Rotary Air Lock Valve , as a special unloading equipment, plays an important role in
cleaning and cleaning, so we summarize some of its characteristics,
so that we can fully understand and maintain the star unloader and
give full play to its ability.
The Rotary Air Lock Valve 's structure is compact, the shape is beautiful, and the use is
convenient.The operation is stable and the noise is low.
Because the bearing and tooth box are some distance from the shell,
the high temperature lubrication has been greatly improved.
Technical Datas of Rotary Air Lock Valve
YJD B Model Rotary Air Lock Valve Parameter
| Model | YJD2 | YJD4 | YJD6 | YJD8 | YJD10 | YJD12 | YJD14 | YJD16 | YJD18 | YJD20 |
| Name |
| Capacity(L/R) | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
| r/min | 25-40 |
| Temp(℃) | T ≤80℃ when temp is more than 80 ℃,need to custom made. |
| Product | Powder or fine particles |
| Motor | KW | 0.55 | 0.75 | 1.1 | 1.5 |
| r/min | 1300 | 1300 | 1400 | 1430 |
YJD B Rotary Air Lock Valve Size
| Model | φA | φB | φC | E | F | M | H | h | φ |
| YJD02 | 250 | 210 | 150 | 650 | 420 | 122.5 | 225 | 12 | 9 |
| YJD04 | 280 | 240 | 180 | 758 | 526 | 140 | 280 | 15 | 11 |
| YJD06 | 300 | 260 | 200 | 778 | 536 | 150 | 300 | 15 | 11 |
| YJD08 | 320 | 280 | 220 | 798 | 546 | 160 | 320 | 18 | 11 |
| YJD10 | 340 | 300 | 240 | 880 | 628 | 170 | 340 | 18 | 13 |
| YJD12 | 360 | 320 | 260 | 900 | 638 | 180 | 360 | 18 | 13 |
| YJD14 | 380 | 340 | 280 | 920 | 648 | 190 | 380 | 20 | 17 |
| YJD16 | 400 | 360 | 300 | 960 | 678 | 200 | 400 | 20 | 17 |
| YJD18 | 440 | 380 | 320 | 980 | 688 | 220 | 440 | 22 | 17 |
| YJD20 | 450 | 400 | 340 | 1000 | 698 | 230 | 460 | 22 | 17 |
| Model | A | B | C | E | F | M | H | h | φ |
| φ300*450 | 450 | 390 | 300 | 1120 | 690 | 225 | 450 | 20 | 12-Φ22 |
| φ350*450 | 490 | 445 | 350 | 1200 | 700 | 250 | 500 | 25 | 12-Φ22 |
| φ400*500 | 520 | 480 | 400 | 1200 | 700 | 250 | 500 | 25 | 12-Φ22 |
| φ500*680 | 630 | 580 | 500 | 1500 | 1100 | 340 | 680 | 25 | 12-Φ22 |
Instructions for use of Rotary Air Lock Valve Feeding Machine
1. Check whether the motor wiring is correct and reliable before
use, and whether to install overload protection.
2. This product has been added No. 00 lithium grease before leaving
the factory.
3. This product is suitable for powder dry materials and fine
particle dry materials, such as high humidity and high viscosity
materials, high temperature materials need to be customized
separately.
4. The safety should be paid attention to when starting, and the
hand should not be extended to the rotor part.
